Flash MX Hands On Training: Working with Text

This chapter will show you how to create horizontal or vertical text, text fields that bring in text from an external document, make text scroll, and create text fields where someone can enter information themselves.

This sample is taken from Chapter 12: "Working with Text" of the glasshaus title "Flash MX H.O.T"

Creating, Modifying, and Formatting Text

In Macromedia Flash MX, you have a lot of control over the attributes of type. By using the Property Inspector, you can change, preview, and adjust text in a few easy clicks of the mouse. The next section will give you a close look at each of the available settings.

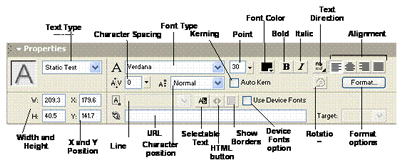

Text Options in the Property Inspector

12_00_09

As soon as you select the Text tool, the Property Inspector will display the text attributes available to you. A chart follows detailing each of the items labeled above.

Text Attributes Defined

Attribute	Description
Text Type menu	Allows you to choose from one of three behaviors (Static Text, Dynamic Text, or Input Text) for the text box. Each text type has its own associated options that will appear in the Property Inspector when that text behavior is selected. Static Text is the default behavior.
Font Type	Displays the name of the current font. Click the arrow to the right of the font name to view a list of all the available fonts. As you scroll through the font list, Macromedia Flash MX displays a preview of what each font will look like.
Character Spacing (Tracking)	Allows you to adjust the space between characters in selected text. Click the arrow next to the Character Spacing field and use the slider to increase or decrease the amount of space between characters.
Character Position (Baseline Shift)	Normal: Resets characters to the baseline. Superscript: Shifts characters above the baseline. Subscript: Shifts characters below the baseline.
Point Size (Font Height)	Displays the current font point size. Click the arrow to the right of the Point Size field and use the slider to adjust the size of the font.
Auto Kern	Controls the spacing between pairs of characters. Checking this box will automatically use the font's built-in kerning information. (See the note below for more information on kerning.)
Font (Fill) Color	Allows you to change the color of the type by presenting you with a palette of available colors. Note: For text blocks, you can use only solid colors, not gradients. If you want to use gradients, you have to break the text apart, which will convert it to a shape, and then you can apply a gradient.
Bold	Bolds the selected type.
Italic	Italicizes the selected type.
Text Direction	New to Macromedia Flash MX. Changes the direction of the text. You can choose from Horizontal; Vertical, Left to Right; and Vertical, Right to Left.
Alignment	Controls how the selected text will be aligned: Left Justified, Center Justified, Right Justified, or Full Justified.
Rotation	Allows you to have more control over vertical text and change its rotation. 12_00_10 This option is available only for vertical text.
Format	Launches a pop-up window with options for formatting text blocks where you can specifically set the values. For horizontal text, the options are Indent, Line Spacing, Left Margin, and Right Margin. For vertical text, the options are Indent, Column Spacing, Top Margin, and Bottom Margin. 12_00_11 Indent controls the distance between the margin of a paragraph and the beginning of the first line of a paragraph. Line/Column Spacing (Leading) controls the spacing between lines of type (horizontal text) or between vertical columns (vertical text). Left/Top Margin determines the amount of space between the characters and the left side (horizontal text) or top (vertical text) of the text box. Even if text is centered or right-aligned, increasing the amount of space in the left/top margin will create the space you specify from the left side/top of the text box to the leftmost/first character within the text box. Right/Bottom Margin determines the amount of space between the characters and the right side (horizontal text) or bottom (vertical text) of the text box.
Width and Height	Displays the width and height of a selected text box.
X and Y Position	Displays the X and Y position of a selected text box, relative to the Stage, where 0, 0 is the top left of the Stage.
URL Link	Creates a hyperlink that is attached to selected text. In effect, this creates a Button that will link to an internal or external HTML file, without the need to create a Button symbol. Using this option will automatically add a dotted line under the linked text in the .fla file. Note, however, that hyperlinks created using this feature will not carry any visual feedback (such as an underline) in the .swf file, although when previewed in a browser, the hand icon will appear when the user moves his or her mouse over the linked text. You learned a better way to create a hyperlink in Chapter 11, ActionScripting Basics.
Line Type	Allows you to choose from Single line (displaying the text on one line), Multiline (displaying the text in multiple lines with word wrap), Multiline No Wrap (displaying the text in multiple lines), and Password. This option is available only for Dynamic and Input Text.
Selectable	Allows a user to select text within a block and either copy it or cut it.
Render Text as HTML	Preserves Rich Text Formatting, including fonts, hyperlinks, and bold with the appropriate HTML tags. You will learn to use this option in Exercise 3 of this chapter.
Show Border Around Text	When selected, displays a white background with a black border for the text field.
Use Device Fonts	If this box is not checked, Macromedia Flash MX will embed font information for any fonts used within the text block. When the movie is exported, this font will appear antialiased (not jaggy). If this box is checked, Macromedia Flash MX will prevent the font information from being embedded. You will learn more about device fonts in Exercise 1 of this chapter.

Note | To Kern or Not to Kern?

When font sets are created, the individual characters might look great all by themselves, but some letters might not look very good next to each other or may not be spaced very well. To solve this issue, many fonts are created with additional instructions about spacing between specific characters. This is known as kerning information.

To illustrate this point, I created two text blocks (one blue and one red) and placed them in the exact same position, with the blue text on top of the red text. I selected the Auto Kern feature in the Property Inspector for the blue text and left the red text at its default spacing. Notice how the red text shows through in some spots. This indicates that the Auto Kern feature has changed the spacing of the blue text.

When you create horizontal text, kerning sets the horizontal distance between characters. As you may have guessed, when you create vertical text, kerning sets the vertical distance between characters.

12_00_12

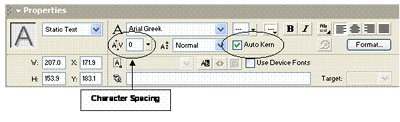

Macromedia Flash MX will not automatically add this special kerning information to your text unless you tell it to by checking the Auto Kern check box in the Property Inspector. You can use this option, especially when typing paragraphs of text, in order to achieve the best-looking text Macromedia Flash MX is capable of producing.

You can also select the Character Spacing option (shown circled above) if you wish to adjust the space between selected individual characters or blocks of characters.

Warning | Text in Macromedia Flash MX and Search Engines

When you create text in Macromedia Flash MX, it is important to note that unlike HTML, Macromedia Flash MX text is not searchable by search engines. Therefore, if you need key words within your movie to be seen by search engines, I suggest you add Meta tags to the HTML document that the .swf file resides in. You will learn more about embedding .swf files in HTML documents in Chapter 16, Publishing and Exporting. For further information about Meta tags, a good resource book is HMTL 4 for the World Wide Web Visual QuickStart Guide, from Peachpit Press.

1. Working with Static Text and Device Fonts

When you add text to your Macromedia Flash MX project, it is important to be aware of what the end user will see when looking at the text on a live Web site. Often this will differ from what you see on your Stage at first glance the text on the Stage might seem fine, but when you preview the movie in a browser, it can look fuzzy or out of focus. There is an option called Use Device Fonts that allows your text to appear sharper in a Web browser. This exercise will teach you the difference between embedded and device fonts. You will work with predeveloped Static Text blocks and then export the blocks of text using both options to see the difference between checking and not checking the Use Device Fonts box.

1. Copy the chap_12 folder, located on the H.O.T CD-ROM, to your hard drive. You need to have this folder on your hard drive in order to save files inside it.

2. Open the staticText.fla file from the chap_12 folder. This file has been created to get you started. Notice the two text blocks side by side. Both of these text blocks have the same text attributes.

12_01_01

3. Using the Arrow tool, select the left block of text and make sure the Property Inspector is open (Window > Properties). In the Property Inspector, notice that the Font setting applied to that text block is _serif. Click on the right text block and you will notice the same Font setting.

12_01_02

4. Choose Control > Test Movie to preview the text blocks. Notice that nothing is different between the two blocks of text. When you are finished, close the Preview Window.

In the following steps, you will modify the right block of text to use a device font while leaving the left block of text at the default setting, which is to use an embedded font.

Note: At the end of this exercise, you will find an explanation detailing the difference between embedded fonts and device fonts.

12_01_03

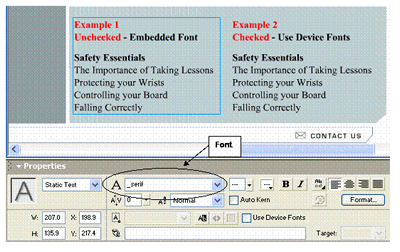

5. Select the left block of text. In the Property Inspector, notice that the Use Device Fonts box is unchecked. This is the default setting when you create a Static Text block. In effect, it will create an embedded font.

12_01_04

6. Click on the right block of text to select it on the Stage. In the Property Inspector, check the Use Device Fonts box.

When you preview this file next, the right block of text will use the device fonts feature and the left block of text will not.

12_01_05

7. Choose Control > Test Movie to preview the movie. Notice that the Embedded Font text block on the left is fuzzier, whereas the text on the right is sharper? This is because the text block on the right is using a device font, which is a quick way to keep the file size down and allow the text to be readable even at smaller font sizes.

8. Save and close this file.

Note | Embedded Fonts Versus Device Fonts

When you select a font for a text block, Macromedia Flash MX automatically takes all the font information (the description of how the font will look, whether aliasing or antialiasing and kerning are in effect, etc.) and embeds it in the exported movie. This is what is known as an embedded font. This ability to embed fonts makes Macromedia Flash MX a great platform for using unusual fonts in movies because when viewing a .swf file or a projector file, the end user doesnt have to own the fonts to see the results, since the Macromedia Flash Player embeds all the necessary information.

The down side to using embedded fonts is that they can increase the file size of the movie. Also, it is important to know that some fonts, although displayed in your project file, cannot be exported with the movie because Macromedia Flash MX does not recognize the fonts outline. You can select View > Antialias Text to preview the text. If it appears rough or jagged, this indicates that the text will not be exported because Macromedia Flash MX does not recognize the font outline.

12_01_02b

Another indication that Macromedia Flash MX does not recognize the font's outline is the Missing Font Warning message, shown above, displayed when you try to preview the movie in the Macromedia Flash MX Player. For example, you might see this message if you are working on a project file that was originally created by someone else who used fonts that you don't have installed on your machine. You may be able to see the font on the Stage, but when you try to test or publish the movie, you'll get this alert to let you know that the font cannot be exported with your movie, and instead a substitute font will be used.

12_01_02c

When you receive the Missing Font Warning message, you have the option of using the program's default substitute font, or you can choose your own substitute for each unrecognized font, as in the picture above.

Device fonts were created as a way around this issue. They are special fonts that will not be embedded in the exported movie and therefore create a smaller file size. Rather than use an embedded font, the Macromedia Flash MX Player displays the text using the closest match on the user's computer to the device font. Generally, at smaller type sizes below 10 points, device fonts are sharper and easier to read.

The drawback to device fonts is that if a user doesn't have a font installed on his/her system that is similar to the device font; he or she might see text that bears little resemblance to the text you see on your machine. To combat this concern, Macromedia Flash MX includes three built-in device fonts to help produce results closer to what you expect:

" _sans similar to Helvetica or Arial

"_serif similar to Times Roman

"_typewriter similar to Courier

2. Loading Dynamic Text Fields Using External Files

Oftentimes you may want to add functionality to your Macromedia Flash MX movie, so that it displays current information such as news, weather reports, or company information that will get updated often. Macromedia Flash MX allows you to do this using a Dynamic Text field, a variable, and an external file that holds the text. This allows Macromedia Flash MX to be a robust program for handling dynamic content. The following exercise will take you through these steps and teach you how to load a precreated .txt file right into a Dynamic Text block.

1. Open the chap_12 folder, and double-click on the textFileLearning.txt file to open it. This is not a Macromedia Flash MX file, it is a .txt file, and it will open in the default text editor on your computer. This .txt file has been created to get you started.

12_02_01

2. In order for Macromedia Flash MX to recognize the information in this file, you need to give it a variable name. Place your cursor at the very beginning of the paragraph and type content= , just as you see in the picture above. You have now declared that the text within the text file will be assigned to the variable name content.

Note | What Is a Variable?

A variable is simply a container that holds information, such as a name or number.

For example, in the following ActionScript,

author='' Kymberlee'';

the variable name (or container) is author and everything after the equal sign between the quotes is the value of the variable, which, in this example, is Kymberlee.

Note | URL-Encoded Text

When you use the loadVariables action (which you will add in step 11) to load an external text file, the data in the text file must be in a special format called URL-encoded. This format requires that each variable travel in a pair with its associated value. The variable and the associated value are separated by the = symbol. In step 2 above, the variable name is content and the associated value is all the text that immediately follows the = symbol.

3. Save and close the text file. Make sure you save it in the chap_12 folder, because Macromedia Flash MX will be referring to this file in later steps.

12_02_02

4. In Macromedia Flash MX, open the dynamicText.fla file from the chap_12 folder. Notice that this file contains one layer with a background image.

You will add the Dynamic Text box next.

5. In the Timeline, add a new layer by clicking the Insert Layer button, and rename this layer holder.

12_02_03

6. Select the Text tool from the Toolbox. In the Property Inspector, choose Dynamic Text, Multiline, and Show Border Around Text. Make sure the Font Color is set to black and the Font Type is set to Verdana with a Point Size of 10.

When you draw the text field on the Stage (next), these settings will create a Dynamic Text field with a white background and a black border that can support multiple lines of text that will wrap.

12_02_04

7. With the holder layer selected, click and drag on the Stage to create a text field that looks just like the picture above.

Tip: After you draw the text field, you can drag the handle of the Dynamic Text box to resize the text field, if necessary.

12_02_05

8. In the Property Inspector, type the word content in the Var (variable) field. This will be the variable name that is assigned to the text field. This has to be the same variable name you assigned to the text inside the .txt file in step 2.

Tip | Loading External Data into a Project File

12_02_01 copy and 12_02_05 copy

Whenever you load external data into a Dynamic Text field in Macromedia Flash MX, you need to perform two important tasks. First, you must give the Dynamic Text field the same variable name you assign to the text inside the text field (as you have just done). Second, you must give Macromedia Flash MX the name of the external file (textFileLearning.txt) that you want to load into your text field and the location where it resides. You will perform this second task next.

9. On the Main Timeline, click the Insert Layer button to add one last layer, and rename the layer actions. Make sure the actions layer is above all other layers.

10. Select the first frame on the actions layer of the Timeline and open the Actions panel (Window > Actions, or use the shortcut key F9).

12_02_06

11. Inside the Actions panel Toolbox, choose Actions > Browser/Network and double-click on the loadVariables option to add it to the Script pane.

12_02_07

12. For the URL, type textFileLearning.txt (this is the text file you modified in step 2), using lowercase and capital letters exactly as you see here. You can leave the other settings at their defaults. This ActionScripting command tells Macromedia Flash MX to look for textFileLearning.txt and to load the variables from that file into the movie (level 0). Since you assigned the variable name content to both the Dynamic Text field and the text within the textFileLearing.txt file, the text field will be populated with the text from the .txt file.

Note: Since the .txt file is in the same folder as the project file and the .swf file, you can simply type the name of the file (the relative address) in the URL field. If, however, the .txt file was located in a different folder, you would have to specify the path to that folder (the absolute address) in the URL field, such as ../projectSnow/learning/textFileLearning.txt.

12_02_08

13. Choose Control > Test Movie to test your movie! When you are finished, close the Preview Window.

Troubleshooting tip: If you don't see any text when you test the movie, select the text field back in the project file and make sure the Font Color is set to black. Also click in Frame 1 on the actions layer in the Actions panel, and check the spelling of the .txt file name to make sure you have the name spelled exactly as the document is named. The URL field in the Actions panel is case sensitive, so you must type the word exactly as the .txt document is named: textFileLearning.txt.

Note | Changing Character Attributes

The Dynamic Text field will take on all the character attributes that are set in the Property Inspector. You can quickly change the way the text is displayed in the .swf file by making some slight modifications to the text box using the Property Inspector. First, select the Dynamic Text field. Then go ahead and try changing the font name, the font height, and the font color. You can even deselect the Show Border Around Text option to remove the white background from the text. Test the movie again and you will see a completely different look for your text field!

14. Save the file and keep it open for the next exercise.
