Universal Form Validator ASP Manual

The Basics: Checkout Form Validation with the DMXzone Universal Form Validator

Introduction

In this tutorial we will show you how to add form validation to your simple Checkout form using the DMXzone Universal Form Validator ASP, allowing your users to get immediate feedback on their entries.

How to do it

1.Define your site in Dreamweaver and Create a new page
Create a ASP page and Define your site in Dreamweaver. You can read more about this HERE.

You should make a page that can be uploaded to your ASP server.

2.Create your Form

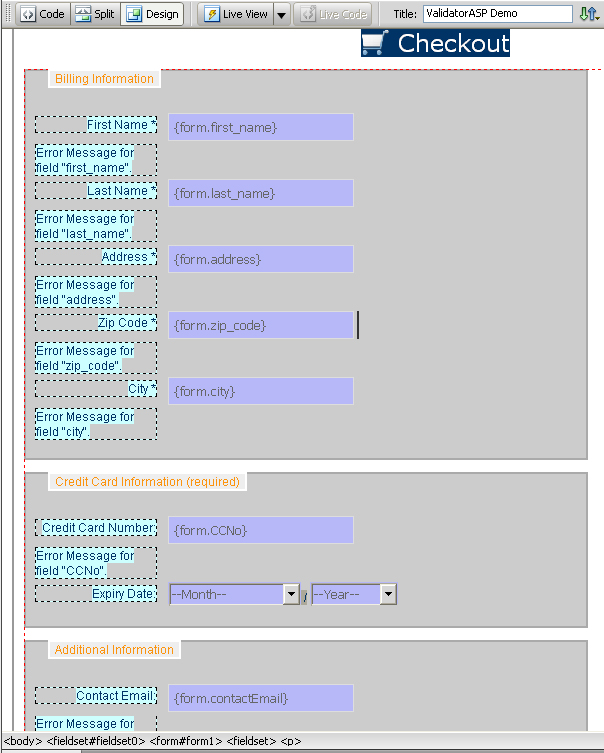

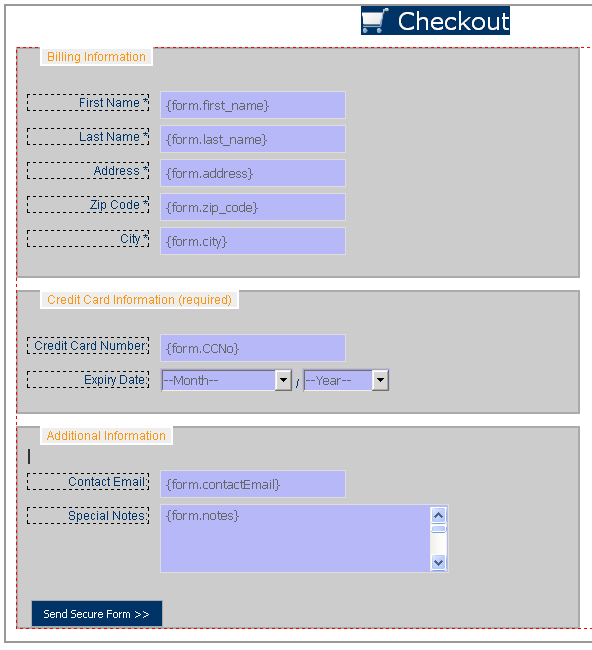

We have created a simple form that looks like this in Dreamweaver:

3.Insert the Server Behavior

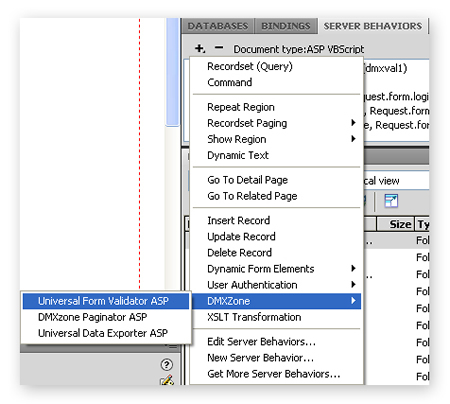

Find the DMXzone Universal Form Validator ASP Server Behavior under the Server Behaviors tab.


Note:  Server Behaviors generate server code (ASP/PHP) and are executed on the server side, while Regular Behaviors are just JavaScript functions executed on the client side.

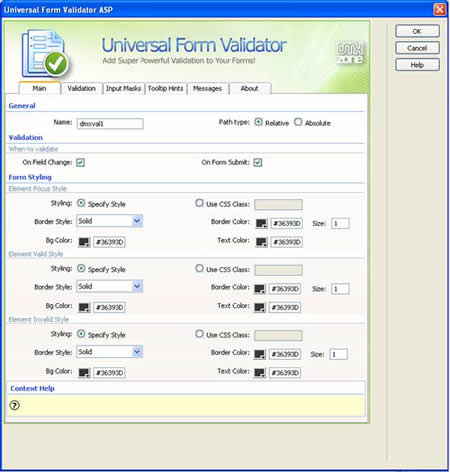

4.A new popup with the DMXzone Universal Form Validator ASP server behavior interface appears:

5.Main Settings

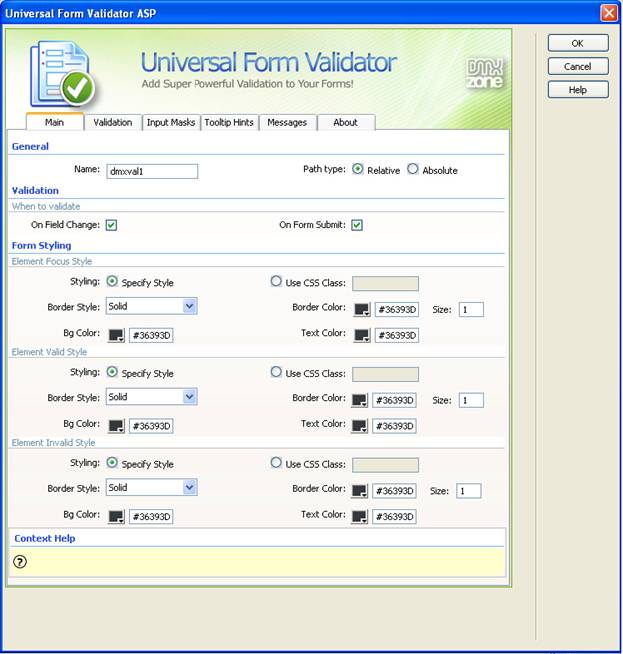

Here at the Main tab, under General you have to select a name for the Validator's instance in the Name field.



Under "Validation" select when you want to validate the field: On Field Change or On Form Submit. You can also choose both if you wish. Validating On Field Change will activate the validation when something is entered in the field and On Form Submit will validate the field when the form is submitted.

6.Form Styling
Here you have two options. You can style the look of your field by using all the settings provided or you can attach your own CSS. For this tutorial we will use the styling available from the dialog.

The Element Focus Style pertains to the style of the field before when the user "Focuses" (clicks) on it.
The Element Valid Style pertains to the style of the field after validation when the entered information is valid
The Element Invalid Style pertains to the style of the field after validation when the entered information is invalid.

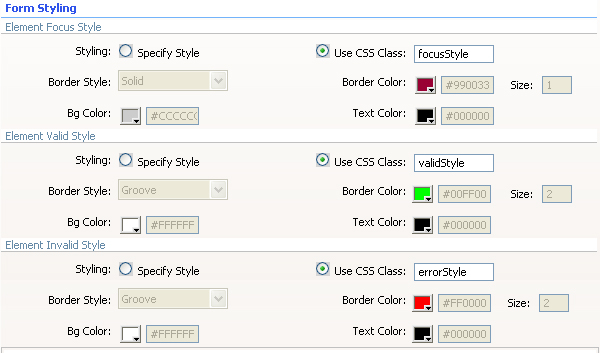

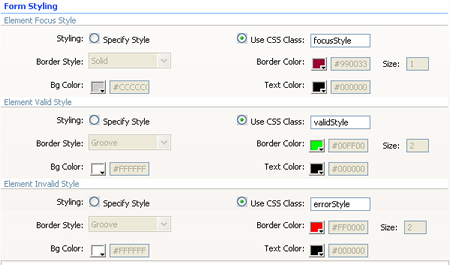

Here are the settings we have chosen:

7.Validation

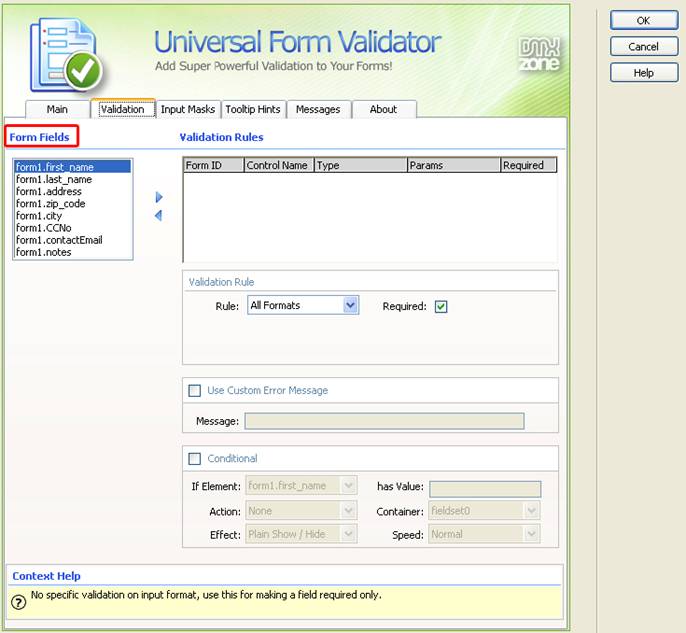

At the Validation tab, you will see all your fields' IDs, prefixed with the form's ID, which are recognized by the Universal Form Validator under Form Fields no matter how many forms you have defined on the page.


Select the field you want to validate and add it with the arrow.


It now appears under Validation Rules. Here we can do several things.

We set the Validation Rule.
In the Rule field you can choose how to validate the entered information. We leave it at 'All Formats' for this field. The Required checkbox should be checked to specify that the field should be filled out. You have a wide range of choices here. To learn more about each one refer to the Reference: Validation chapter.

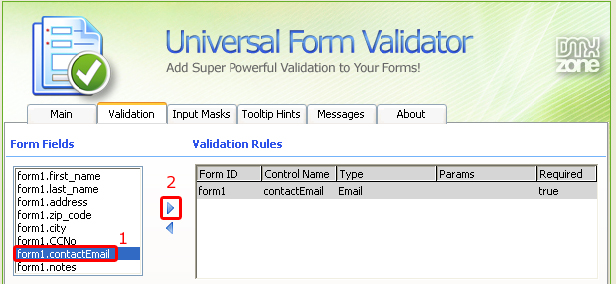

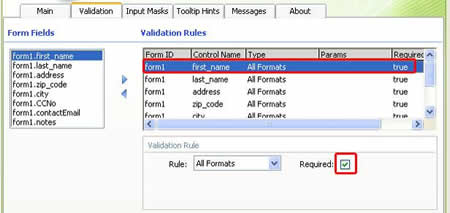

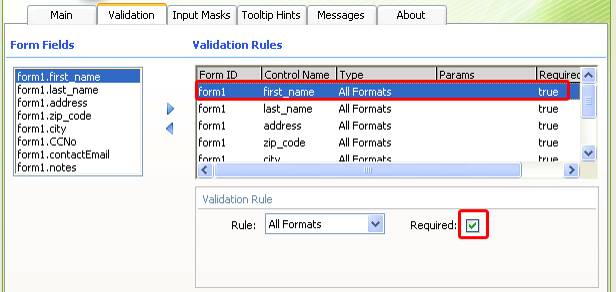

Choose your form1.first_name field from the list of Form Fields. Press the arrow to add it to the Validation Rules box and then do the same for all the others. Select form1.first_name and make sure the Required checkbox is marked.

Repeat this process for all the other fields except  form1.CCNo and form1.contactEmail

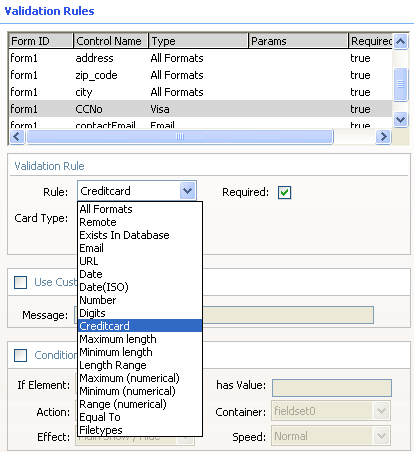

Now select form1. CCNo and go to Rules. Select 'CreditCard' and you will get an additional field for Card Type.


Here we choose 'Visa' to require the user to put in only a Visa Credit Card number. Make sure the Required checkbox is marked.

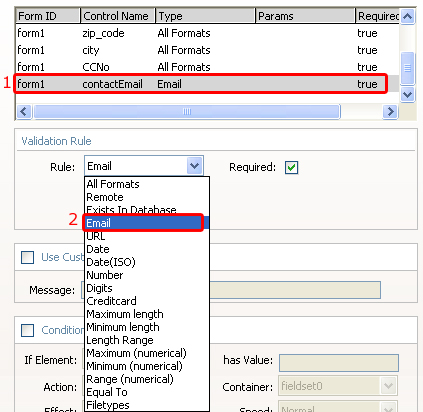

Now select form1.contactEmail and go to Rules. Select 'Email' and make sure the Required checkbox is marked.

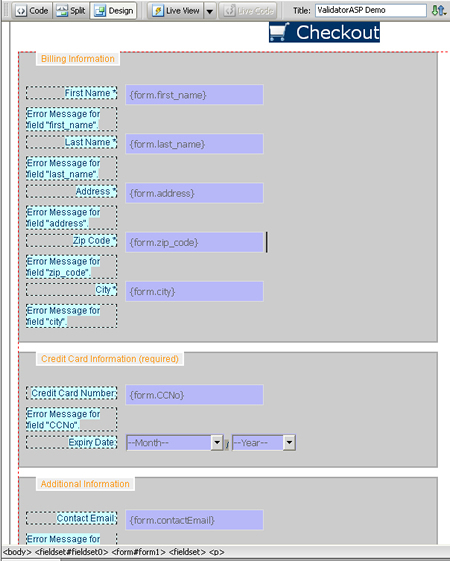

8.Your result should look like this in Dreamweaver:

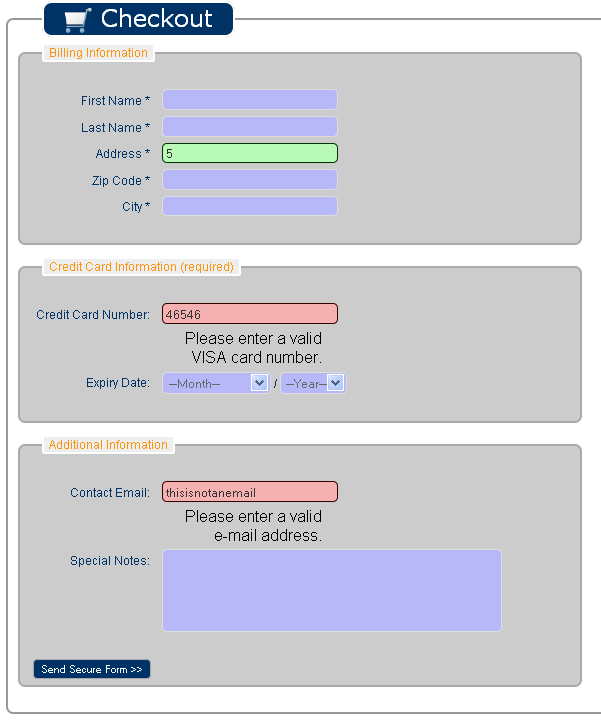

and like this in your browser:
