Advanced: Editing the DMXzone Calendar with the Property Inspector

Introduction

In this chapter we're going to edit the properties of the DMXzone Calendar using the property inspector of

Dreamweaver. Click on the preview of the Calendar in the design view to display its properties.

Editing the Options

Editing the DMXzone Calendar Properties

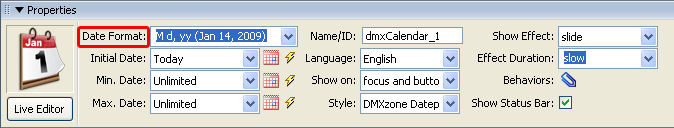

The Date Fromat at the very top of your table allows you to choose how you would like your dates to be displayed.



The following explains what the abbreviations mean:

• d - day of month (no leading zero)
• dd - day of month (two digit)
• D - day name short
• DD - day name long
• m - month of year (no leading zero)
• mm - month of year (two digit)
• M - month name short
• MM - month name long
• y - year (two digit)
• yy - year (four digit)
• '...' - literal text
• '' - single quote

The field is editable, so you can also add your own date format.

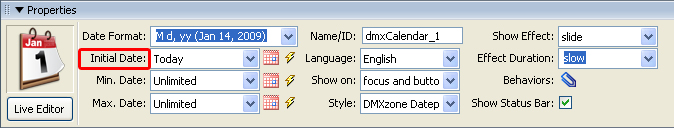

Initial Date sets the date that you want to be highlighted when the calendar is first opened (consequently, this could be changed by the user by choosing on another date). The default option is "Today". There are 3 ways to set a date. One is to select an option from the drop-down menu such as "Days before today" and enter the number of days you want in the popup dialogue. Another way is to click on the calendar icon and set the date and the third way is to get the date from a recordset, from an already database (click the lightning bolt) which contains dates listed in the following formats:

"Month dd, yyyy hh:mm:ss"
"October 12, 1988 13:14:00".

"Month dd, yyyy"
"October 12, 1988"

If a specific time zone is to be kept, your date format will should look something like this:

"Thu, 01 Jan 1970 00:00:00 GMT-0400" where " GMT -0400" is your server specific time zone.
If you do not enter the specific time zone, the calendar will assume the time zone of the place it is viewed at.
You can read more about this here


Note that this option will work only if the calendar text field is empty. If a particular date or range is appointed in the text field, it will overwrite the Initial Date settings.

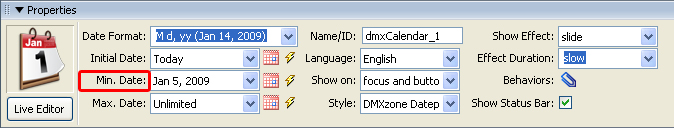

The Min. Date option lets you choose the date BEFORE which the dates will be inactive. In our case we select the 5th, which makes the 1st through the 4th inactive and grayed out.

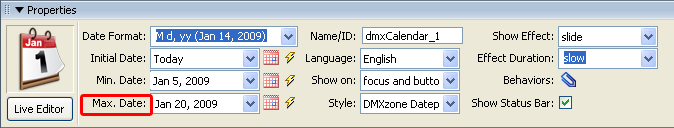

The Max. Date option lets you choose the date AFTER which the dates will be inactive. In our case we select the 20th, which makes the rest of the dates in that month inactive and grayed out.

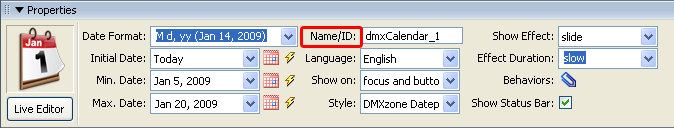

Name/ID gives the Calendar a unique ID which is then used to recognize this specific calendar.

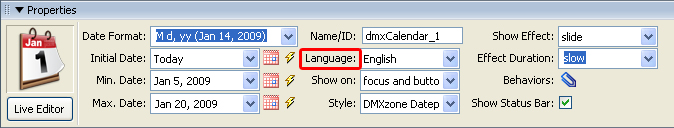

Again, here you can edit the Language of your calendar. We leave it at English.

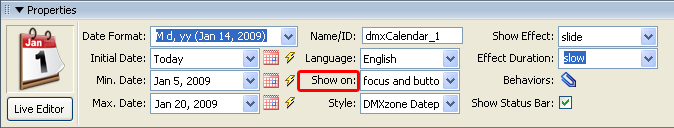

The Show on option controls how the user interacts with the calendar. Select "button" If you want your calendar to appear by clicking on a button or icon. If you want your users to access the calendar with the tab button or just by clicking in the field then select "focus". If you would like to combine these two options select "focus and button". We select the last as our choice.

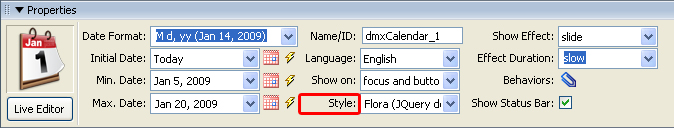

Again, as in the extension dialogue, here you can change the Style of your Calendar. We leave it at Flora.

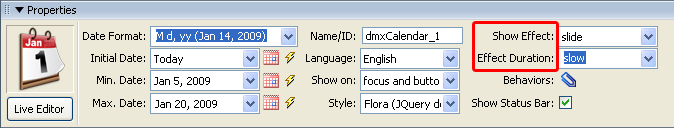

Choose the Show Effect and Effect Duration of your animation. The difference here is that the Effect Duration field is editable as well as functioning as a drop-down menu. You can select from the predefined speeds or you can enter your own keeping in mind that 1 second is equal to 1000.

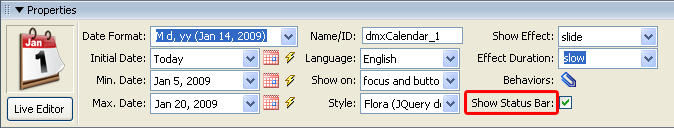

Show Status Bar should be checked here as well since we selected it from the extension popup in the previous chapter.



Save your files, upload them to your server and the end result would look similar to this:
